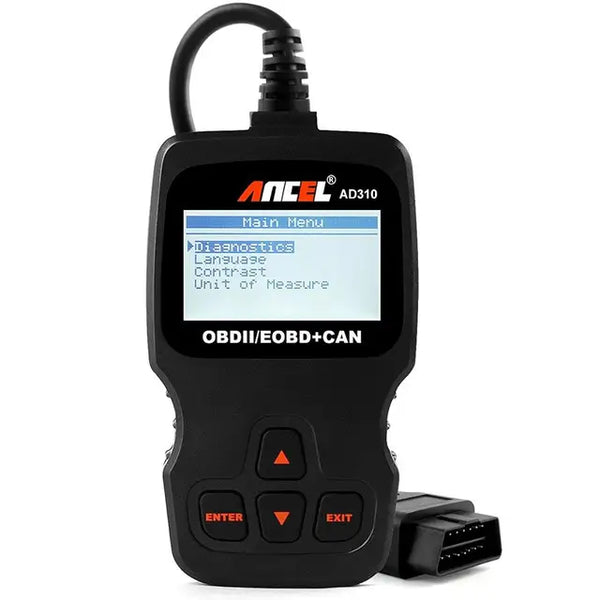

Ancel AD310 OBD2 car diagnostic tool, support 6 OBDII engine modules test, can read, clear DTCs from engine. And show live data, I/M readiness, VIN, convenient to clear error code, turn off Engine Check Light

Support 8 Kinds of Different languages

English, French, German, Spanish, Dutch, Finnish, Portuguese, Russian

Powerful Function Engine Check Including

1,Read code

2,Remove code

3,Live data

4,Freeze frame

5,I/M readiness

6,Vehicle Information reading

7, Hard(memory) Codes Reading

8, Pending Codes Reading

9, Shows Codes Definitions

Support OBDII Protocols

ISO 9141-2 (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
ISO14230-4 KWP (fast init, 10.4 Kbaud)
ISO15765-4 CAN (11bit ID, 500 Kbaud)
ISO15765-4 CAN (29bit ID, 500 Kbaud)
ISO15765-4 CAN (11bit ID, 250 Kbaud)
ISO15765-4 CAN (29bit ID, 250 Kbaud)
SAE J1850 PWM(41.6Kbaud)
SAE J1850 VPW(10.4Kbaud)

OBD2 Scanner Supported Car List (Very Important)

AD310 Support 12V Diesel , Gasoline Car, Do NOT Support Hybrid, Electrical Car

American (USA) car
Compatible with Standard OBD2 Cars from 2001 to Now:
for Chrysler, for Ford, for GM, for Jeep

European car
Compatible with Standard OBD2 Cars from 2004 to Now:

(if you car is Opel in 2004, 2005, 2006, please ask us first)
for Alfa Romeo, for SAAB, for Acura, for Opel, for Audi, for Seat, for Bentley, for Skoda, for Daewoo, for Benz, for Daihatsu, for Land Rover, for BMW, for Vauxhall, for Volvo, for Fiat, for VW, for Ford, for Jaguar

France Car
for Citroen, for Peugeot after 2006, for Renault after 2010

Not Support for Renault Clio 2 / Renault Megane / Dacia Logan / Renault Logan

Asian (Japanese/Korean) car
Compatible with Standard OBD2 Cars from 2005 to Now:

(if your car is in 2004 2005 2006 release , please ask us first)

for KIA, for Isuzu, for Honda , for Mitsubishi, for Hyundai, for Dacia, for Lexus , for Mazda, for Nissan, for Subaru, for Suzuki, for Toyota

Chinese car:
Compatible with Standard OBD2 Cars from 2008 to Now:
for BYD, for Chery, for Geely, for Great Wall, for Karry

NOTE:

Even though it compatible with most cars, but different regions support the vehicle OBD2 protocol at different times, or some car is special design, so it may not compatible with some cars which do not support OBD2 protocol. Especially Japanese and Korean car brand.

Please Leave us message in below format, we will reply you within 8 hours.
for example : xx, 2005, 2.0cc, Diesel

Warning
Not Support Russian Cars, VAZ,UAZ,LADA

Not works with Trucks, Pickups, Vans

For Ssangyong Actyon from 2009 to 2017 years.
For Ssangyong Korando 2.0 TD Diesel , from 2013 to 2017 years.
For Ssangyong Kyron 2.0 Diesel , from 2010 to 2017 years.
For Ssangyong Rexton 2011 to 2017 years

ANCEL AD310 Usage

1, Plug into the car OBD2 16pin port

2, Start the engine (ignition), the tachometer will point around 0.7

3, Chose the diagnostic menu as you want

Specifications
Screen: 128*64 pixel with Contrast Adjustment
Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: -20 to 70°C (-4 to 158°F)
External Power: 8.0 to 18V Power Provide via Vehicle Battery
Dimension: 4.70” * 2.70” * 0.80”(125mm*70mm*22mm)
Weight: 0.32kg(0.74lb)

Package List
1* Ancel AD310
1* User Manual

Noticed: there is a protection film on the screen, please tear it before use

the USB port is for the facotry use, please do not use it, thank you

Noticed

Working system: Engine Only
