● Multifunctional design includes cooling heating drying and fan
● Powerful cooling and heating for rooms up to 750 sq.ft
● Effortless control via your smartphone/voice/remote control
● 7 fan speeds: auto/low/low-mid/mid/mid-high/high/turbo
● Inverter technology ensures energy-efficient operation
● Removable and washable filter for hassle-free maintenance
● Humanized design such as child lock and self-cleaning
● R32 refrigerant boasts a lower environmental impact
● Chassis heating maintains long-lasting performance
● Set schedules easily with the 24H on/off timer
● 4D auto swing to prevent direct blowing
● Quiet sleep mode ensures a restful night
● Complies with ETL and AHRI

● Powerful Cooling and Heating: This 11500 BTU mini split air conditioner is designed to cool or heat large spaces up to 750 square feet. The advanced chassis heating prevents freezing and maintains the normal operation of the outdoor unit. It can cool even at 50℃/122℉ and heat even at -15℃/5℉.
● High Energy Efficiency: The inverter air conditioner improves energy efficiency by adjusting the compressor speed and avoiding frequent starts and stops. Plus the use of R32 refrigerant makes this ac unit an energy-saving and green cooling solution for your home. It is also compliant with ETL and AHRI.
● Smart Control from Anywhere: This mini split air conditioner and heater pump system is Wi-Fi enabled allowing you to tailor your comfort via smartphone and voice. It is compatible with Alexa or Google Assistant. Additionally a handy remote control with digital display is included for easy operation.
● Versatile and User-friendly Design: With a wide temperature range and 7 operating modes including auto/cool/ heat/dry/fan/sleep/ECO and 7 fan speeds this mini split AC caters to all your comfort needs. Other features such as 4D auto swing child lock I Feel and Health offer added convenience for everyday use.
● Low Noise and Easy Maintenance: The sleep mode with ultra quiet operation and screen off function provides a peaceful environment without disturbing your sleep. The 133℉/56℃ self-cleaning and washable filter make maintenance easier and air cleaner. As for installation of this AC unit a licensed HVAC professional is required.

Color	White
Material	Metal Aluminum Copper AS
Indoor Unit Dimensions	30.5" x 8.2" x 9.8"
Outdoor Unit Dimensions	30.9" x 11.4" x 19.7"
Diameter of Air Pipe	3
Diameter of Liquid Pipe	1
Diameter of Drain Pipe	0.67"
Max Remote Control Distance	39 ft
Min. Circuit Ampacity	11A
Voltage	208/230V~/60Hz
Cooling Capacity	11500 BTU
Heating Capacity	11500 BTU
Cooling Power	1170W
Heating Power	1100W
Coverage Area	750 Sq.Ft/70㎡
Air Flow Volume	294 CFM
Dehumidifying Capacity	66 Pints/Day (31.2 L/Day)
Temperature Setting Range	60℉~88℉/ 16℃~31℃
Operating Ambient Temperature	5℉-118.4℉
Refrigerant	R32
SEER2	17
HSPF2	8.3
Indoor Noise Level	28 dB
Outdoor Noise Level	55 dB
Net Weight of Indoor Unit	20 lbs
Net Weight of Outdoor Unit	53.5 lbs
Box Qty	2(May vary by batch)

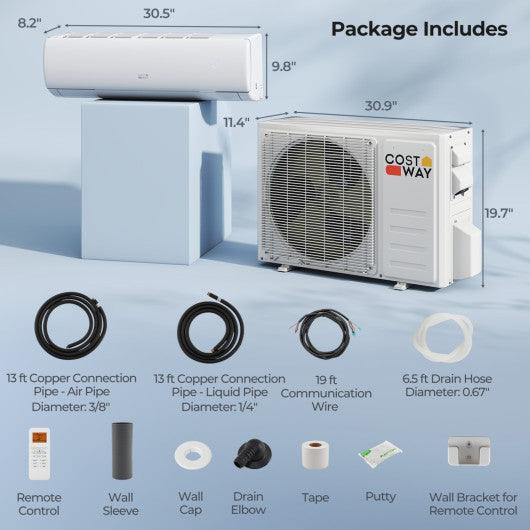

Package Includes	1 x Indoor Unit
	1 x Outdoor Unit
	1 x 13 ft Copper Connection Pipe - Air Pipe
	1 x 13 ft Copper Connection Pipe - Liquid Pipe
	1 x 5.8 m/19 ft Communication Wire
	1 x 2 m/6.5 ft Drain Hose
	1 x Remote Control
	1 x Wall Bracket for Remote Control
	1 x Wall Sleeve
	1 x Wall Cap
	1 x Drain Elbow
	1 x Tape
	1 x Putty
	1 x User Guide

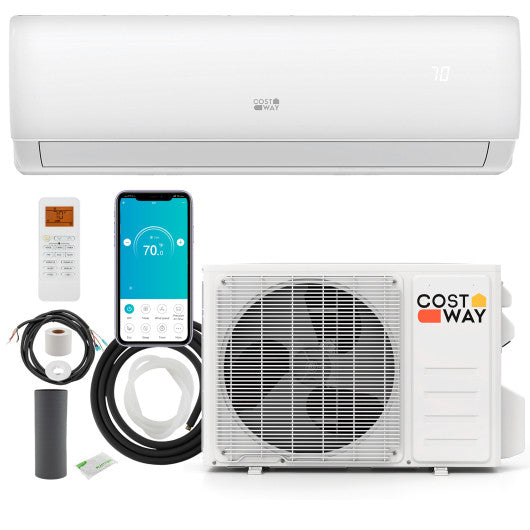

EchoCool Series 11500 BTU 208/230V Mini Split Air Conditioner and Heater Pump System
