BF-R3 _MG_1296 - _MG_1311 _MG_1312 _MG_1316 _MG_1317

Description:

Hot Spots
Tri-band / Tri-display	dual standby
128 groups channels storage	Shortcut menu operation mode
VFO & Memory channels scan	Emergency Alarm
Time-out Timer (TOT)	0~9 grades VOX selectable
PTT & ANI ID	FM radio and 25 stations storage
Voice companding	50 CTCSS/104 DCS
High/Low TX power selectable	Busy channel lock-out(BCLO)
DTMF function	OFF SET function
Wide/Narrow Band(25kHz/12.5kHz)	Yes
VOX function	Yes
Busy lockout function	Yes
Scanning function	Yes
Monitor function	Yes
Time-out Timer (TOT) function	Yes
LCD display	Yes
Dual display	Yes
Battery voltage display function	Yes
Channel name display and editing functions	Yes
Signal strength indicator	Yes
Keypad lock function	Yes
Built-in Led torch	Yes
FM radio	Yes
Wire clone function	Yes
Emergency alarm function	Yes
Low battery alarm	Yes
Power saving function	Yes
High/Low TX power selectable	Yes	4W/1W
ROGER SET	Yes
Chinese and English voice prompt	Yes
PC software programmable	Yes
Basic Descriptions
Rated Voltage	7.4V DC±10%
Output power	≤ 5W

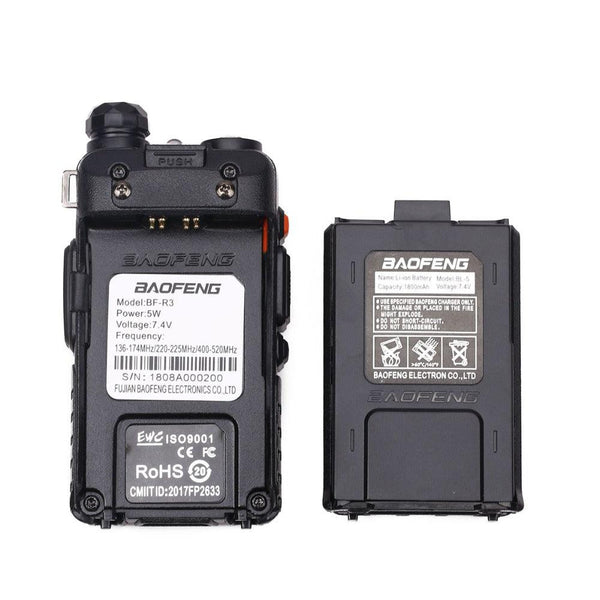

Battery type	Li-ion battery
Battery capacity	1800mAh
Working temperature	-20~+50°C
Antenna Impedance	50Ω
Weight	255g
Dimension(L×W×H)	58×32×110mm(Not Antenna)
Specification
Frequency stability	±2.5ppm
Carier wave tolerance	5ppm
Modulation	16kΦF3E / 11kΦF3E
Max frequency deviation	< 5kHz(Wide) < 2.5kHz(Narrow)
Modulation character	6 dB per fold frequency patch
Emission current	< 1.6A(5W)
CTCSS / DCS	0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow)
Sensitivity	< 0.16μV(12dB SINAD)
Silent sensitivity	< 0.2μV
Intermediation Distortion	<10%
Inter modulation	8-12mv
Adjacent channel selectivity( wide/narrow)	<-65dB(Wide) <-60dB(Narrow)

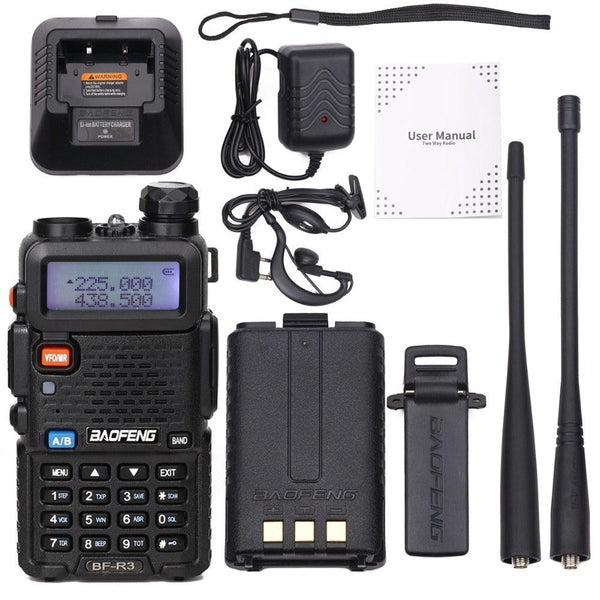

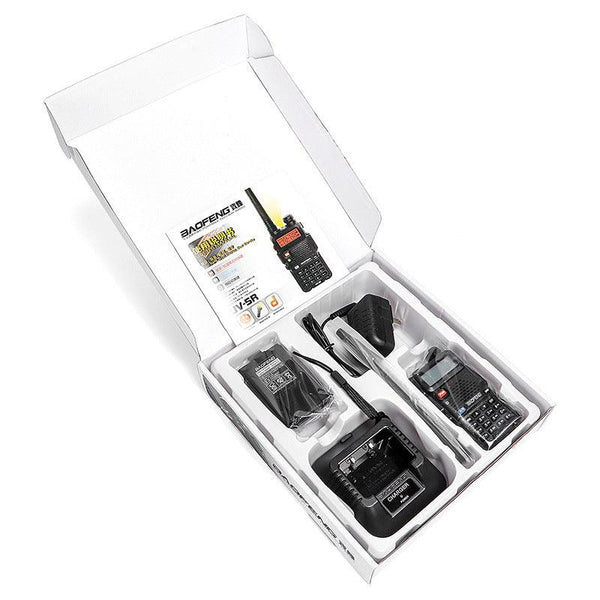

Package Include:

· 1 x Portable radio

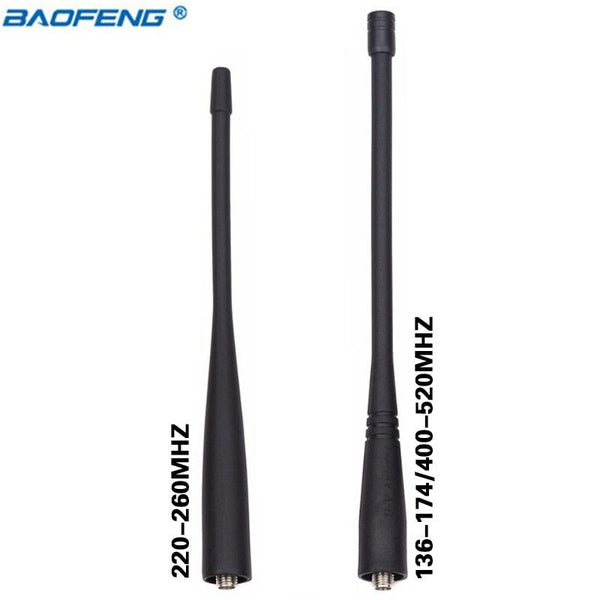

· 2 x Antenna

· 1 x Li-ion battery

· 1 x Desktop Charger ( 100V ~ 240V )

· 1 x Belt clip

· 1 x The sling

· 1 x Earpiece (as the gift)

· 1 x User's manual

YELL Mary

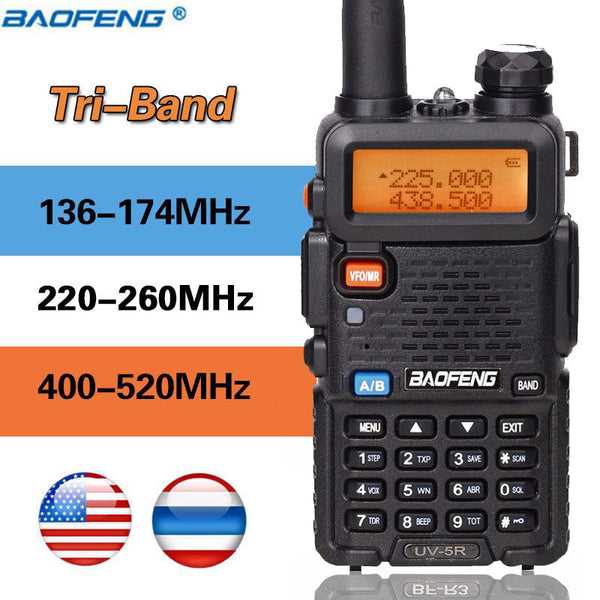

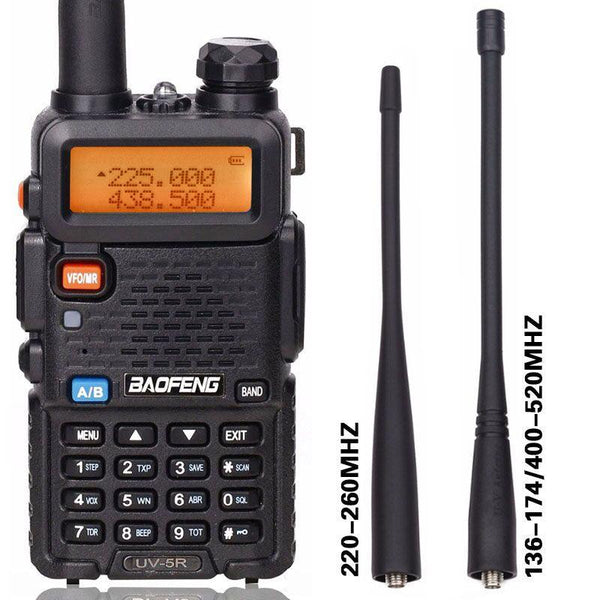

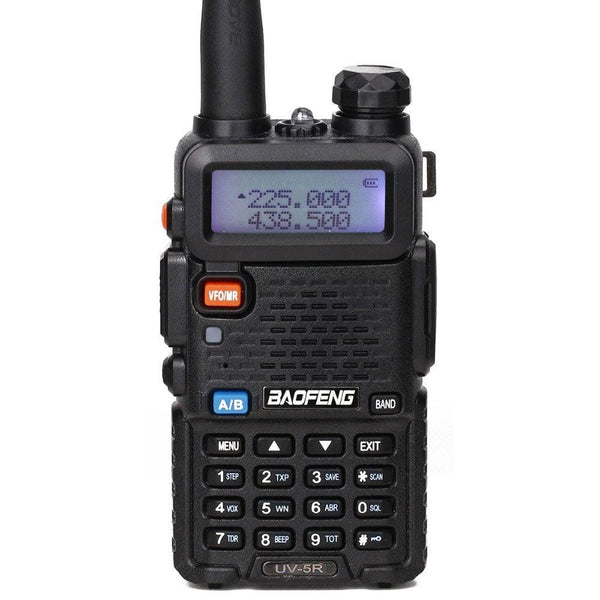

BaoFeng BF-UV5R Tri-Band Walkie Talkie 136-174Mhz 220-260Mhz/400-520Mhz+2 AntennaTwo Way Amatuer Portable ham Radio up of UV-5R
