Functions:

VHF/ UHF DUAL-BAND TWO WAY RADIO

1. Frequency Range:

136-174 / 400-520MHz

2. Dual-Band Display, Dual Freq. Display,

Dual-Standby

3. Output Power:

4/1Watts

4. 128 Channels

50 CTCSS and 104 CDCSS

5. Built-in VOX Function

6. 1750Hz Brust Tone

7. FM Radio (65.0MHz-108.0MHz)

8. LED Flashlight

9. Large LCD Display

10. Hight /Low RF Power Switchable

11. 25KHz/12.5KHz Switchable

12. Emergency Alert

13. Low Battery Alert

14. Battery Saver

15. Time-out Timer

16. Keypad Lock

17. Monitor Channel

18. ROGER SET

19. Channel Step: 2.5/5/6.25/10/12.5/25KHz

Features:

·Frequency Range: 65-108MHz (FM Receive only)

136-174 MHz and 400-520 MHz (TX/RX)

·Channel No: 128

·Frequency Stability: ±2.5ppm

·Antenna: High gain Dual-Band Antenna

·Antenna Impedance: 50Ω

·Operating Voltage: DC 7.4V

·Mode of operation: Simple or semi-duplex

·Dimension(W x H x D): 100 x 52 x 32 mm

·Weight: 250g (including battery, antenna)

Transmitter:

·Output power: 4W / 1W (Max 5W)

·Modulation Mode: 16kΦF3E / 11kΦF3E

·Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)

·Spurious Radiation: <7μW

·Adjacent Ch. power: ≤-65dB(Wide) / ≤-60dB(Narrow)

·Pre-emphasis characteristics: 6dB

·Current: ≤1.6A(5W)

·CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

·Intermediation sensitivity: 8-12mv

·Intermediation distortion: <10

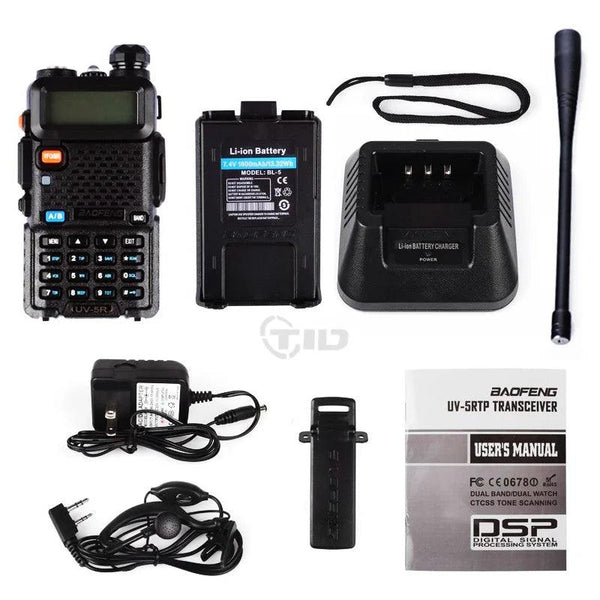

Contains:

1 x BaoFeng UV-5R (VHF136-174MHz / UHF 400-520MHz) Two-Way Radio

1 x 7.4V 1800mAh Li-ion Battery Pack

1 x Antenna 136-174/400-479.995Mhz

1 x Earphone Mic/Headset

1 x Belt Clip

1 x Hand Strap

1 x Adapter

1x Desktop Charger ( 100V ~ 240V )

Product Manual

Notice 1:

BaoFeng UV-5R Walkie Talkie VHF/UHF136-174Mhz&400-520Mhz Dual Band Two way radio Baofeng uv 5r Portable Walkie talkie uv5r
