● Powerful cooling & heating keeps large spaces consistently pleasant
● Lower energy consumption thanks to the inverter technology
● R454B refrigerant aligns with modern environmental expectations
● Control from anywhere with smart wifi connectivity and voice control
● Compatible with Amazon Alexa/Google Assistant
● Includes a remote control for quick and easy adjustments
● 24-hour timer for you to enjoy effortless set-and-forget comfort
● Outdoor unit with chassis heating boosts cold-weather dependability
● Whisper-quiet operation plus sleep mode and screen off function
● 7 modes and 8 fan speeds for customized airflow experience
● 4D swing spreads air more evenly throughout the space
● Self-clean function and removable filters reduce upkeep

● Powerful Climate Control: This 24000 BTU mini split air conditioner and heater is designed to cool large spaces up to 1500 sq. ft. The outdoor unit features chassis electrical heating to support dependable operation in colder weather heating even at -4℉ and cooling even at 122℉.
● High Efficiency Performance: This 21 SEER2 and 9.5 HSPF2 split ac unit adopts an advanced inverter technology that helps maintain steady operation and reduce energy cost with fewer starts and stops. Besides the low-gwp R454B refrigerant supports modern efficiency goals for everyday home heating and cooling.
● Intelligent WIFI Control: You can control your comfort from anywhere with this wifi enabled mini split air conditioner that works with Alexa and Google assistant. Adjust temperature switch modes and manage fan speed from your phone or voice demands and keep a backup option with the included remote control.
● Customized Comfort & Low Noise: This mini split ac with heat pump offers 7 modes including auto cool heat dry fan ECO sleep plus 8 fan speeds from mute to turbo. The 4D swing helps distribute air evenly for fewer hot or cold spots while the quiet operation as low as 28 dB makes it ideal for light sleepers.
● User-friendly Features: The self-clean function and washable filters allow for easier maintenance while the child lock enhances safety. This inverter ac unit also includes a 24-hour timer that fits your schedule while helping you save energy when you are away or asleep. Note: Installation should be performed by a professional technician.

Color	White
Material	Cold-rolled Steel Sheet Copper Aluminum
Indoor Unit Dimensions	46.89” x 10.16” x 14.17”
Outdoor Unit Dimensions	36.5” x 14.96” x 27.52”
Voltage	208-230V
Frequency	60Hz
Cooling Capacity	24000 BTU
Heating Capacity	24000 BTU
Rated Input Consumption (Cooling)	2080W
Rated Input Consumption (Heating)	1800W
Rated Current (Cooling)	9.4A
Rated Current (Heating)	8.2A
Coverage Area	1500 sq.ft.
Maximum Air Flow Volume	847 CFM
Dehumidification Capacity	131.9 Pints/Day
Operating Ambient Temperature	-4℉-122℉
Temperature Setting Range	60℉~88℉
Max Remote Control Distance	26 ft
Refrigerant	R454B
SEER2	21
HSPF2	9.5
Indoor Noise Level	28 dB
Diameter of Gas Pipe	1/2"
Diameter of Liquid Pipe	1/4"
Net Weight of Indoor Unit	36.4 lbs
Net Weight of Outdoor Unit	88.2 lbs
Box Qty	2
Is Assembly Required	Yes

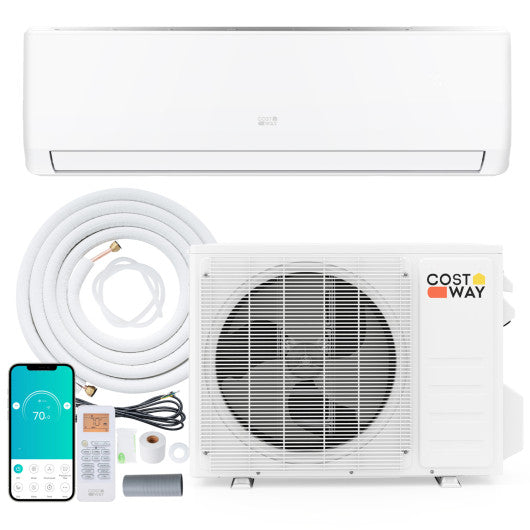

Package Includes	1 x Indoor Unit 1 x Outdoor Unit
1 x 13ft Communication Wire	1 x 16.4ft Copper Connection Pipe - Liquid Pipe
1 x 6.5 ft Drain Pipe	1 x 16.4ft Copper Connection Pipe - Gas Pipe
1 x Insulation Foam	1 x Remote Control 1 x Remote Control Holder
1 x Wall Sleeve 1 x Wall Cap	1 x Tape 1 x Putty 1 x User Guide

EcoGuard Series 24000 BTU 21 SEER2 208-230V Mini Split Air Conditioner and Heater
