Specifications:

Working voltage: DC12V (27A battery a including)

Operating Current: 8mA

Working frequency: 433.92MHz(Optional 315MHz)

Modulation Mode: ASK (AM)

The transmission power: 100mW

Emission Distance: 50 to 100 m (proof)

The encoding type: self Copy

Works with the following remote control IC modules (please check your original remote control before ordering),and your remotes also should be Fixed code or Learning code. AX5326-3.PT2262. PT2260. EV1527. FP527. PT2242. HT600. HT680. HT6207. HT6010. HT6012. HT6014. AX5326-4. SMC918. PT2240. HT6013. HT6013. HT12D,etc

Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products

How to Program:

    1. Press the One and Three buttons until the LED flashes - it takes around 3 seconds.
    2. Place the cloner remote and the original remote close together/side by side so that they are touching.
    3. Press a button on your original remote in the same time and one of the buttons on the clone remote and hold until the LED on the clone remote flashes steadily. (The Blue LED will first flash 3 times quick, then stops for a second, then flashes steadily for successful cloning).
    4. Now programming is successful! If you want to program more buttons just repeat steps 2 > 4. It's that easy! To reset the remote simply start again with step

Notice:

The essential condition for the selection of the remote control;the copyed remote control operates normal,chip is compatible and frequency is correct.
Before buying,please make sure the copyed remote control operating frequency or choose & buy the frequency adjustable type remote control.
Before buying,please confirm whether your remote control can be copyed or not.
Our remote control can copy the fixed codes and learning codes
rather than stealth codes.It can't copy original car remote control, two-way remote control and rolling code remote control (Rolling code chips start with HCS commonly,such as HCS200,HCS201,HCS300,HCS301,etc)

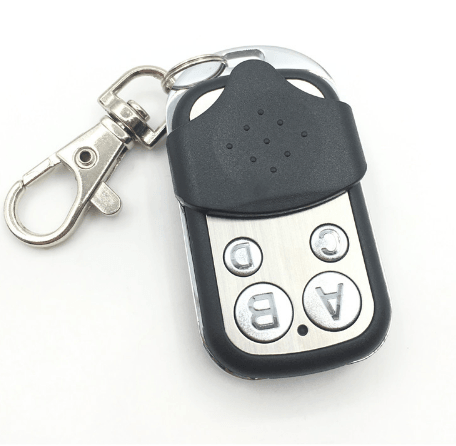

Note: this item have two type, one is the letter button pattern A, antoher is pattern type pattern B, please leave note for the type you want, otherwise we will send at random.

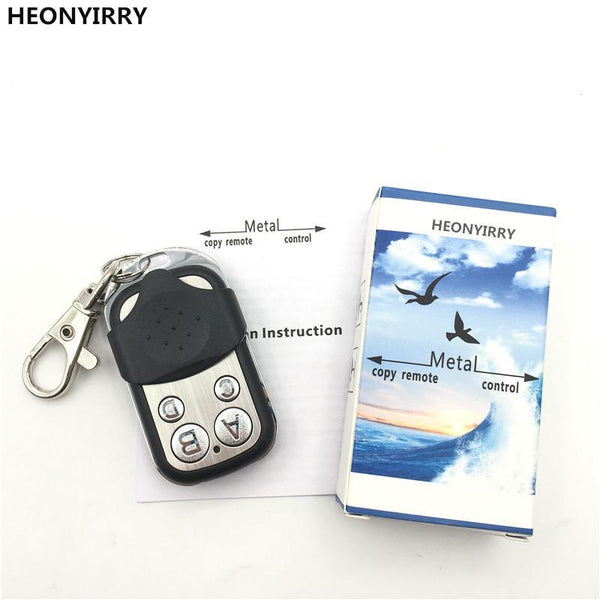

Package:

1 x User Manual English

1 x Remote Control

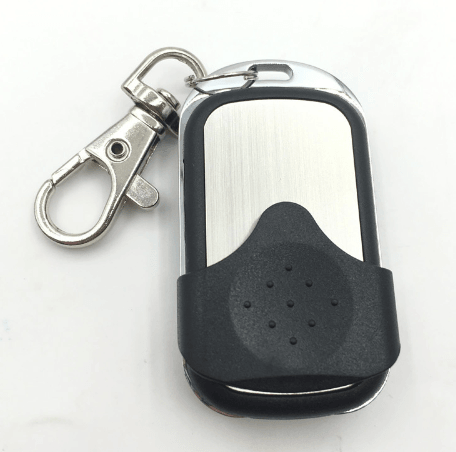

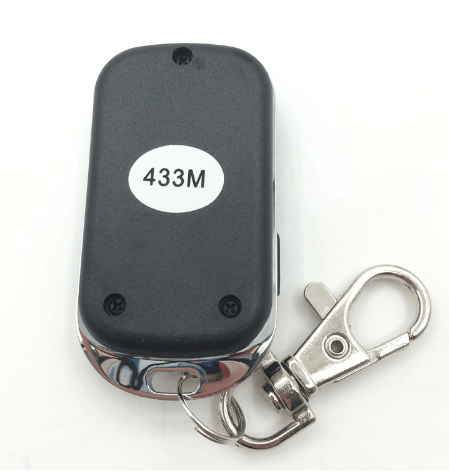

Electric Cloning Universal Gate Garage Door Remote Control Fob 433mhz Key Copy Controller
