Mid Motor & Dual Suspension & Dual Battery

The FAT-HS has a Bafang mid-drive motor with 1000 nominal watts of power and a whopping 160 Newton meters of torque, for a max speed of 48 km/h. This motor feels every bit as powerful as it sounds, and because it’s a mid-drive it’s also able to utilize the gearing of the bike for either extra torque or extra speed, depending on what gear you’re in. This is a feat that hub drives simply cannot do. It’s also something you absolutely want if you plan on tackling extremely steep hills, deep mud, snow or sand, or if you plan on towing a trailer with extra gear, which is something you could most definitely do with the FAT-HS.

Bafang M615 BBSHD Mid-Drive System

The Bafang M615 system features the G320 electric motor with over 1500 watts of peak power, 160Nm of torque and cadence-sensing assist. This allows you to span cities, climb hills, and explore all the places you want to go with ease.

Front Suspension Fork

Absorbing a lot of jarring bumps and shocks on rugged routes, the RST fork helps maintain your energy, helping you focus on riding better and faster.

Specification

Battery: 48V15Ah Standard+Optional Second Battery 14/17Ah
Range: 80 Miles (48V/17Ah SAMSUNG Cells + Second Battery 14Ah)
Motor: 48V1000W Bafang M615 mid motor with 160 N.m torque
Total Payload Capacity: 300 lbs
Recommended Rider Heights: 5'3" ~ 6'4"
Maximum Speed: 28 MPH

Charger: US standard 2.0 A smart charger
Controller: 48V
Display: CDC6 LCD Display
Weight: 77.1 lbs
Pedal Assist Intelligent: 0~5 level pedal assist
Box Dimensions: (cm) 172 L x 36 W x 85 H

Components

Tires: Kenda Krusade Sport Tires 26" x 4.0" with K-Shield Protection
Brake lever: Hydraulic disc Brakes Levers with motor cutoff switch
Rear Light: Taillight
Shifter: SHIMANO ALTUS/SUNRACE RDM91 - 9 speed gear shift system
Brake Rotor: EUNORAU Design 180MM Hydraulic Disc Brakes
Throttle: Thumb throttle
Stem: EUNORAU TDS-D507G-8FOV
Crank: 170mm forged alloy
Cassette: Shimano- 11-34T

Front Fork: RST GUIDE 75mm Travel
Rear Shock: KS-388RL,48mm
Pedal: Nylon pedal with reflectors
Frame: Aluminum Alloy 6061 Full Suspension
Front Light: 6-60V LED light
Saddle: Selle Royal Saddle, Height to Ground 34"-43.3"
Tool: Included
Chainring: 42T 7075 CNC chain-wheel crank
Rims: 26 inch Black Alloy wheels

*Note: To avoid any damage, please lock out the rear shock when you install the 17A second battery

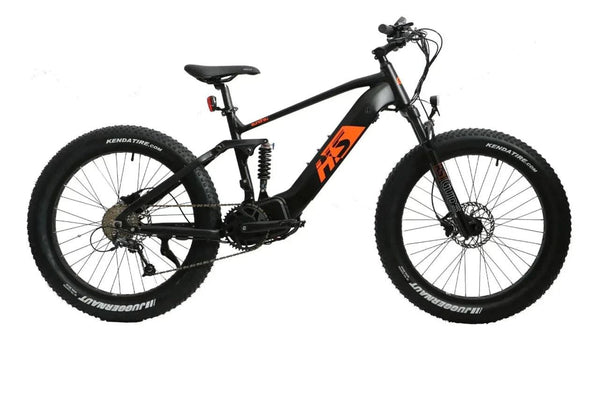

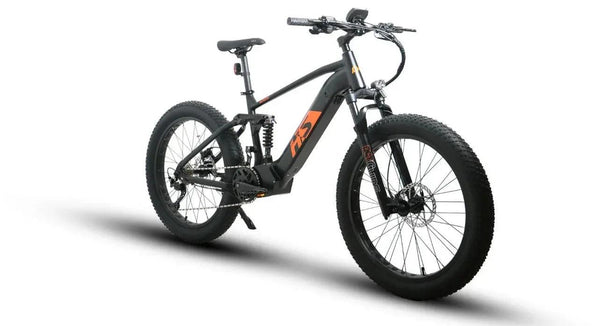

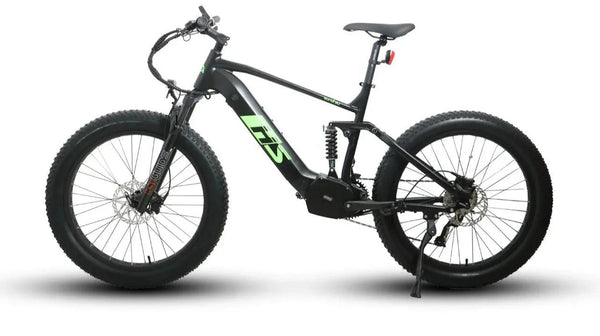

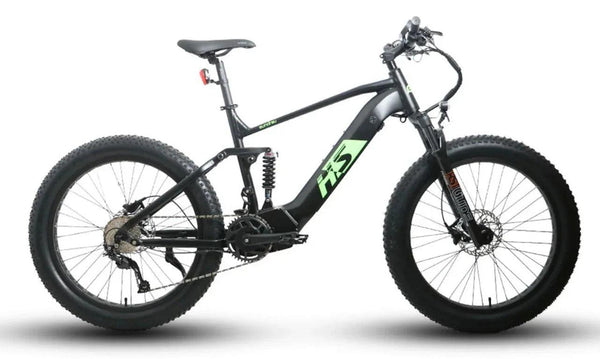

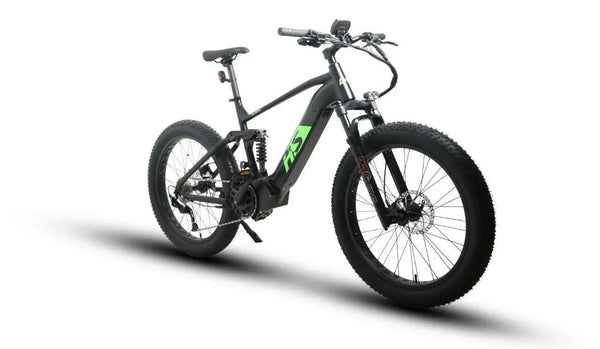

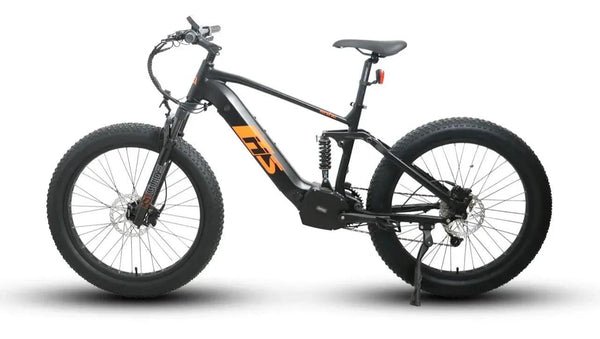

Eunorau FAT-HS
