Exclusive military low-light camera, the industry's most cost-effective camera, excellent night vision effect, less interference, special shielding, the best quality camera!

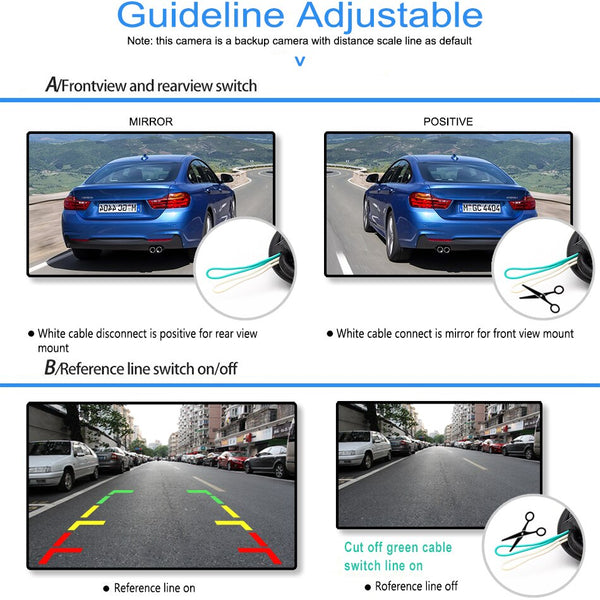

A. Green switch wire ( distance scale line switcher ) B. White switch wire ( mirror/non-mirror switcher )

Instructions

• If you need a backup camera with distance scale line, do no cut any wires. • If you need a backup camera without distance scale line, please cut the green wire. • If you need a front camera with distance scale line, please cut the white wire. • If you need a front camera without distance scale line, please cut both the green and white wires.

Night Vision

Tips

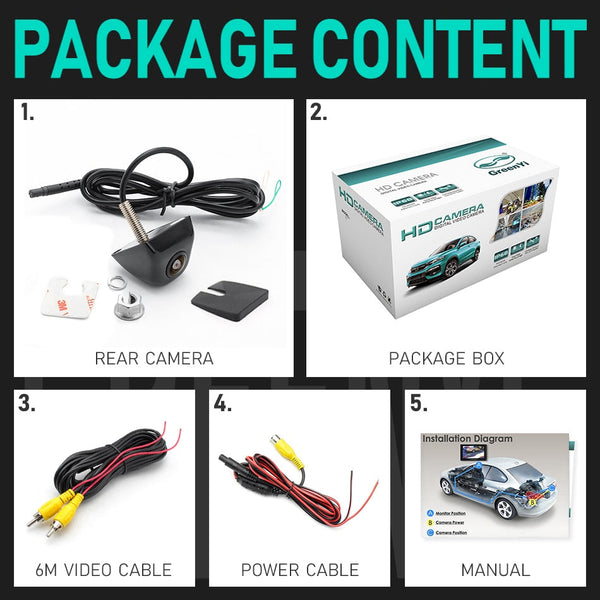

1. The 4 pin to RCA cable is a dedicated cable and cannot be replaced; 6m video cable can be replaced. 2. About (+12V No.3): This red wire cannot be connected to ACC, requires connection of reversing lights.

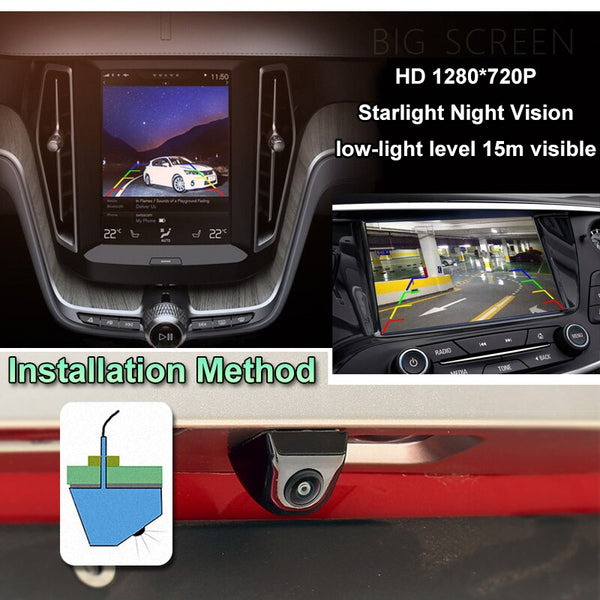

Installation Diagram

Specification

Image Sensor: MCCD 1409 TV system: NTSC / PAL Option TV Line : 1000 TV Line Effective Pixels: 720 Pixels. Low-light Level Night Vision , 15m visible distance for night . White Balance: Auto Power: DC 12V Fit for Android DVD player and Any TFT Car Monitor.

GreenYi 170 Degree Fish Eye Lens Starlight Night Vision Vehicle Rear / Front View Camera low-light level 15m visible Car Camera
