SPECIFICATIONS

Brand Name: DEEPELEC

Hign-concerned Chemical: none

Style: Portable

Origin: Mainland China

Function: Built-In Speaker

Function: Built-in Amplifier

Type: AM / FM

Type: FM(化妆品)

Type: MW

Type: SW

Type: LW

Package: Yes

Body Material: Metal

Dimensions (WxHxD): 162*74*29 mm

Model Number: MALACHITE DSP V5

Bluetooth: No

WIFI: No

Power Supply: Rechargeable Battery Pack

Screen: Yes

Battery Capacity: 5000mAh

Choice: yes

semi_Choice: yes

If unable to purchase from this link, please go to:

https://www.aliexpress.com/item/3256805344323688.html

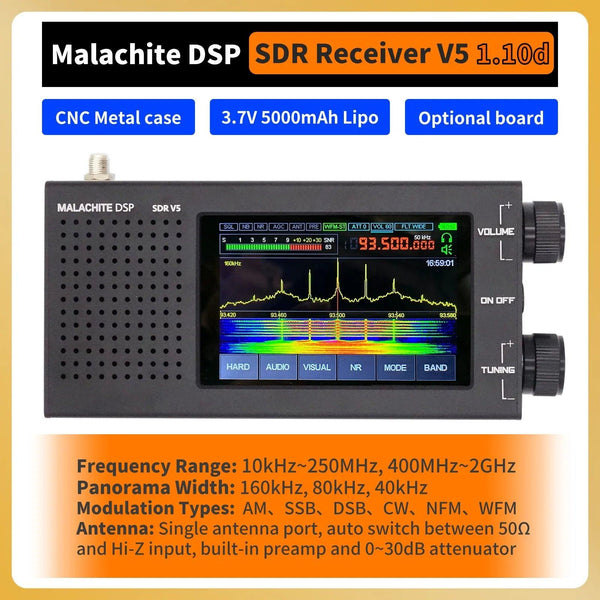

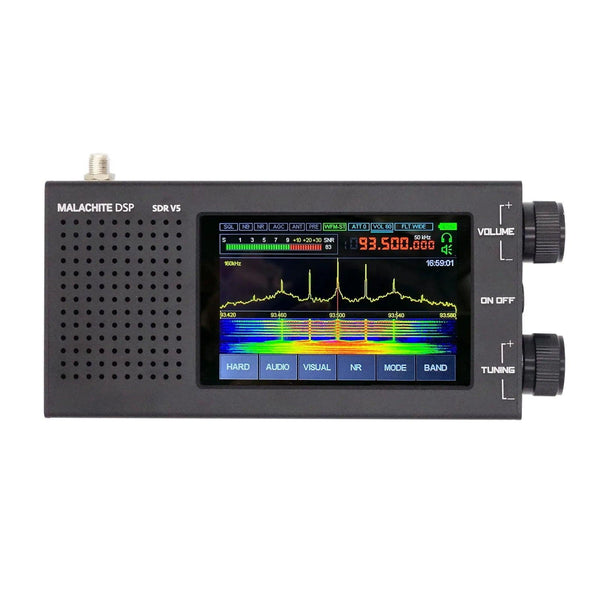

Malachite DSP SDR Receiver V5 with Optional Board CNC Aluminum Case, Front full-range speakers 1.10d full-featured Firmware, 5000mAh Li-Po Battery

This is the 2023 new product V5, which fixes all the bugs of V4.

Malachite V5 product use video :

https://www.youtube.com/@deepelec/featured

Malachite V5 product materials download :

https://drive.google.com/drive/folders/1bvqzbb5ilDmHdCqA-hv9BEyROLqRiLFA?usp=sharing

Facebook Groups :

https://www.facebook.com/groups/malahitsdr

We customized a set of CNC aluminum casing for the Malachite DSP V5 receiver, built-in 4Ω 5W full-range speakers, 3.7V 5000mAh large-capacity lithium battery; single antenna port design, 50 ohm and high-impedance input mode is auto(or mannual) switched, and the built-in RF preamplifier and 0-30dB program-controlled RF attenuator; equipped with a 20mm diameter large dial encoder, make this SDR radio receiver more convenient and practical.

Product Description:

Malachite receivers are built according to the SDR software-defined radio principle. Based on this relatively general hardware platform, different communication functions are realized by loading different software.

1. Frequency range: 10kHz-250MHz, 400MHz-2GHz

2. Spectrum width: 160kHz, 80kHz, 40kHz

3. Modulation type: AM, SSB, DSB, CW, NFM, WFM (stereo RDS support)

4. Sensitivity: 0.3uV up to 1GHz

5. Dynamic range: 82dB

6. Antenna interface:

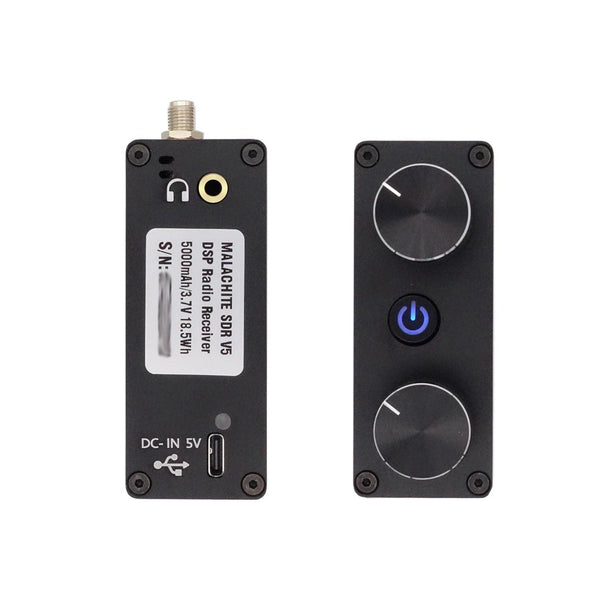

Single antenna port design, standard SMA female gold-plated connector, automatic switching between 50 ohm and high impedance input mode, built-in RF preamplifier and 0-30dB program-controlled RF attenuator;

7. Battery capacity:

Built-in 3.7V 5000mAh ultra-large capacity lithium battery, the battery life is about 12 hours at normal volume;

8. Software DSP functions:

variable filter width, adaptive squelch (NR), threshold squelch, noise canceller (NB), automatic gain control(AGC), automatic notch filter (ANF), RDS support Stereo FM, analog stereo, equalizer;

9. Hardware features:

STM32H743 ARM CPU at 480MHz, MSi001 multi-band and multi-mode tuner, 3.5-inch 480x320 LCD display, capacitive touch screen, two mechanical encoders;

10. USB connection to personal computer capable of transmitting CAT, IQ and audio;

11. CNC aluminum shell design, anodized, high-end atmosphere;

12. Body size: 162 x 74 x 29 mm (L x W x H) (without protrusions)

13. Body weight: 350g

14. Accessories:

70CM rod antenna x1, EVA hard shell machine protection bag x1, TYPE-C data cable x1 and Thick flannel bag x1.

Comparison of existing malachite receivers

The main board adopts 4-layer immersion gold process PCB, and all high-frequency filters use high-Q value wire-wound inductors, which are reliable in performance.

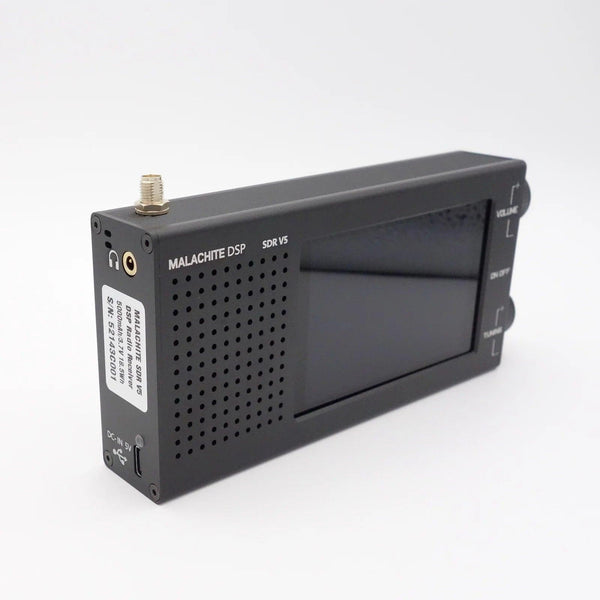

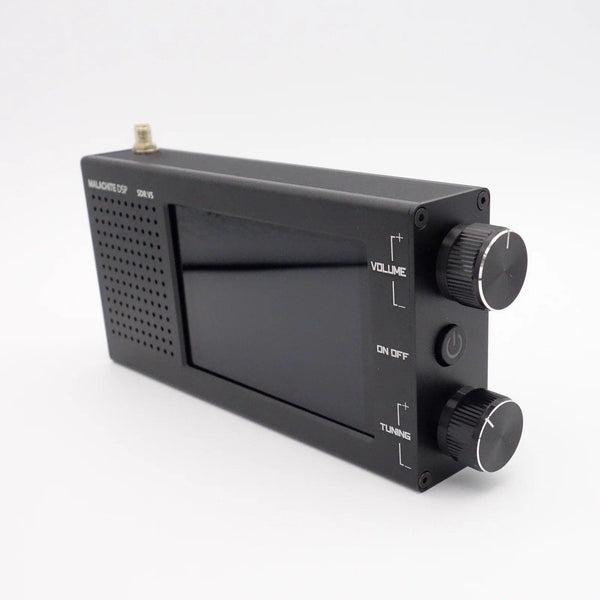

More pictures appreciation.

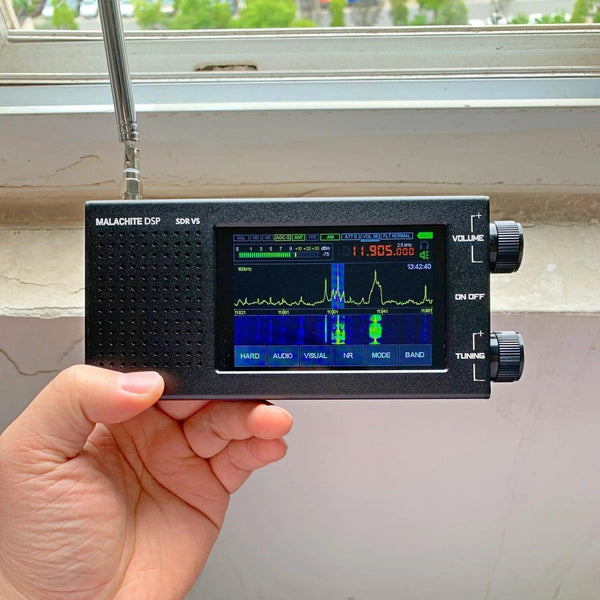

Listen to AM, SW and FM radio with whip antenna

Compared with the size of a certain brand of radio:

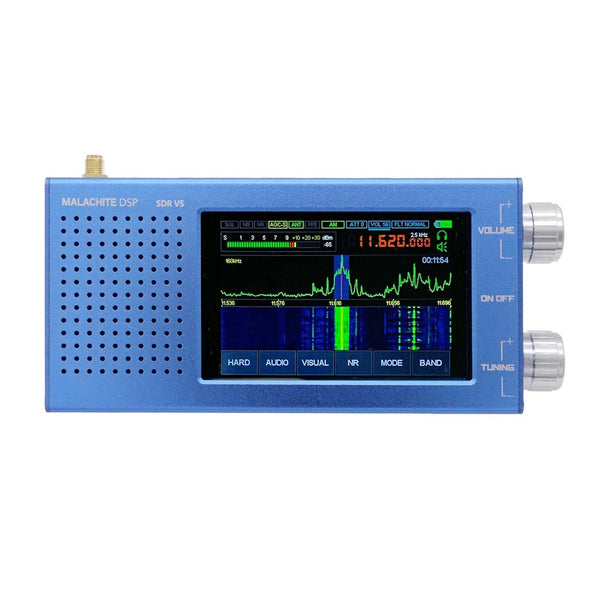

Also available in blue color.

Malachite DSP SDR V5 shipping list :

1. V5 host x1

2. 70CM high quality telescopic antenna x1

3. TYPE-C data cable x1

4. EVA hard shell machine protection bag x1

5. Quick start guide x1

6. Thick flannel bag x1

7. Custom protective film x1

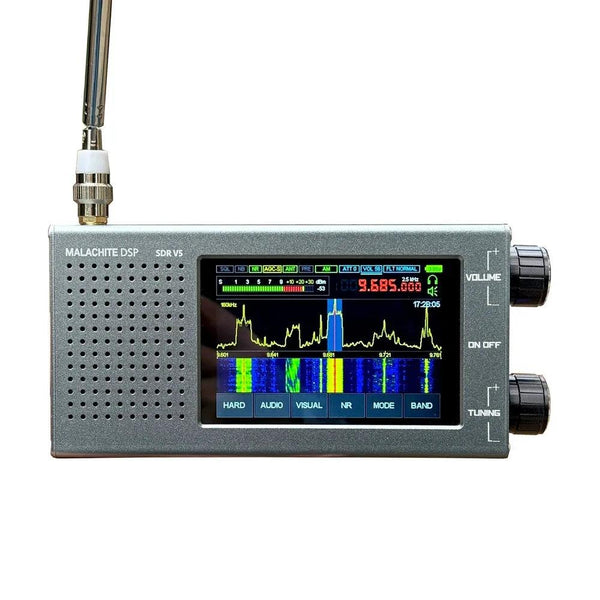

2024.01 Added new gray options:

All three colors now come with high-quality telescopic antennas and sound chamber speakers.

Have Fun with your new Toy! 73~
