●Adjust temperature independently across 2 zones for optimal comfort
●Inverter technology maintains steadier temperatures with smarter energy use
●R454B refrigerant supports more responsible forward-looking operation
●Built-in versatility for every situation with 7 modes and 8 fan speeds
●Enjoy peaceful sleep without distractions with sleep mode and screen off function
●Effortless convenience with smart control options and wifi connectivity
●Chassis electrical heating ensures reliable performance in colder conditions
●Ideal for homes offices and light commercial spaces
●4D auto swing for balanced and even air distribution
●Ducted design keeps your space neat and discreet
●Self-clean function makes maintenance a breeze
●24-hour timer for set-and-forget scheduling
●Child lock helps prevent unwanted changes

● Multi-Zone Climate Control: This 35000 BTU concealed ducted mini split AC provides powerful and balanced heating and cooling across 2 zones. The outdoor unit features chassis electrical heating to ensure reliable operation in tough weather with -13℉ low ambient heating and 131℉ high ambient cooling.
●Significant Energy Savings: The advanced inverter technology maintains steady temperatures with less energy waste helping reduce cycling and improve comfort. With a 22.5 SEER2 rating and R454B refrigerant this multi zone split air conditioner and heat pump system is built for efficient year-round use.
● Multiple Control Options: This wifi enabled ducted mini split ac unit allows you to use the included remote wall thermostat smart app or voice commands for simple daily operation. It is compatible with Alexa and Google Assistant. The 24H timer allows for scheduled operation while the child lock keeps settings secure.
● All-season Companion: There are 7 modes for you to choose from: auto cool heat dry heat fan ECO sleep along with 8 fan speeds for precise comfort. The 4D auto swing improves room coverage while self-clean function helps keep air paths fresher over time.
● Quiet Operation & Wide Use: This multi-zone air conditioner and heater runs with low sound levels as low as 28 dB offering a peaceful environment for busy households and workplaces. It is ideal for household & light commercial use including living room bedroom office restaurant and more. Note: Professional installation is required.

Color	White
Material	Cold-rolled Steel Sheet Copper Aluminum
Indoor Unit Dimensions	.
9K	27.56" x 17.8" x 7.87"
12K	27.56" x 17.8" x 7.87"
18K	36.22" x 17.8" x 7.87"
24K	43.31" x 17.8" x 7.87"
Outdoor Unit Dimensions	.
18K	36.5" x 14.96" x 27.52"
27K	38.5" x 16.57" x 31.61"
35K	42.28" x 18.43" x 33.58"
Multi Zone Combination	2
Voltage	208-230V
Frequency	60Hz
Temperature Setting Range	60℉~88℉
Refrigerant	R454B
Indoor Unit Noise Level	28 dB
Max Remote Control Distance	39.2 ft
Coverage Area-9K	450 Sq.Ft
Coverage Area-12K	750 Sq.Ft
Coverage Area-18K	1250 Sq.Ft
Coverage Area-24K	1500 Sq.Ft
Dehumidification Capacity-9K	55.8 Pints/Day
Dehumidification Capacity-12K	81.2 Pints/Day
Dehumidification Capacity-18K	111.6 Pints/Day
Dehumidification Capacity-24K	131.9 Pints/Day
Maximum Air Flow Volume-9K	335 CFM/570 m³/h
Maximum Air Flow Volume-12K	360 CFM/610 m³/h
Maximum Air Flow Volume-18K	500 CFM/850 m³/h
Maximum Air Flow Volume-24K	741 CFM/1260 m³/h
18K SEER2	24
27K SEER2	24
35K SEER2	22.5
18K HSPF2	10.5
27K HSPF2	10.5
35K HSPF2	10
Diameter of Liquid Pipe	1/4"
Diameter of Gas Pipe-9K	3/8"
Diameter of Gas Pipe-12K	3/8"
Diameter of Gas Pipe-18K	1/2"
Diameter of Gas Pipe-24K	5/8"
Net Weight of 18K(Outdoor Unit)	92.6 lbs
Net Weight of 27K	119 lbs
Net Weight of 35K	145.5 lbs
Net Weight of 9K	33.1 lbs
Net Weight of 12K	33.1 lbs
Net Weight of 18K(Indoor Unit)	39.7 lbs
Net Weight of 24K	50.7 lbs

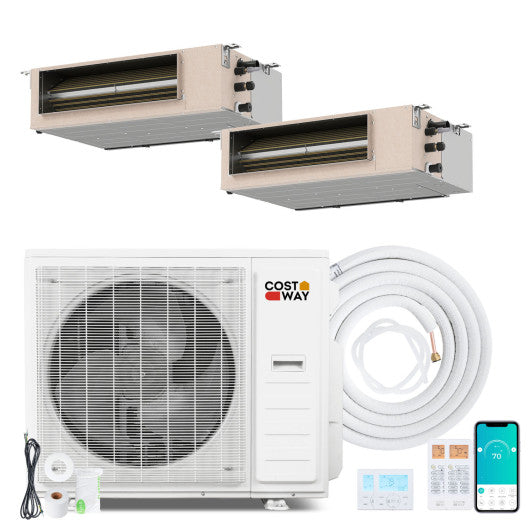

Package Includes	1 x Outdoor Unit 2 x Indoor Unit
2 x Copper Connection Pipe - Gas Pipe	2 x Copper Connection Pipe - Liquid Pipe
2 x Communication Wire 2 x Drain Hose	2 x Remote Control & Holder
2 x Wall Sleeve 4 x Wall Cap	4 x Tape 4 x Putty 2 x Screw Kit
4 x Mounting Foot Pad	5 x User Guide

X-Pro 35000 BTU 2 Zone 22.5 SEER2 Concealed Ducted Mini Split AC-24K + 24K
