●Enjoy independent temperature control in 3 areas
●Inverter technology provides outstanding energy efficiency
●R454B refrigerant supports a more future-friendly approach
●Stay comfortable year-round with 7 modes and 8 fan speeds
●Control your comfort via the app voice remote or wall thermostat
●Chassis electrical heating prevents freezing in colder weather
●Versatile application for homes offices or commercial spaces
●Ceiling cassette creates a clean and built-in look
●360° airflow spreads air evenly across the room
●24-hour timer for scheduled temperature changes
●Self-clean function supports fresher operation
●Whisper quiet operation as low as 32 dB
●Child lock adds peace of mind for families

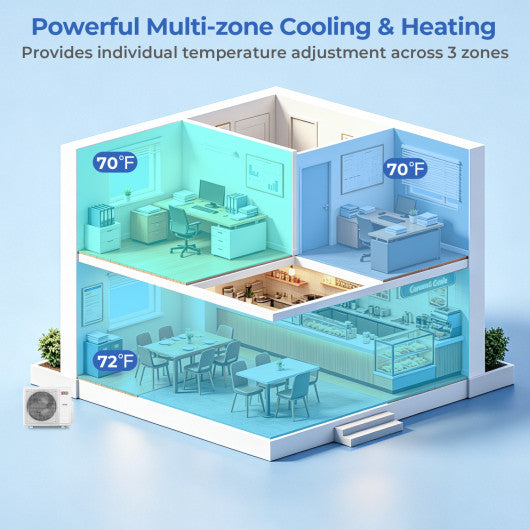

● Powerful Multi-zone Cooling & Heating: This 35000 BTU ceiling cassette mini split ac provides individual temperature adjustment across 3 zones. The ceiling-mounted design saves wall space and spreads air evenly. Engineered to keep working in harsh conditions it cools even at 131℉ and heats even at -13℉ with a built-in chassis electrical heating system.
● Lower Energy Consumption: Rated at 22.5 SEER2 this mini split air conditioner and heater utilizes R454B refrigerant with a lower global warming potential and incorporates inverter technology to maintain stable temperatures while effectively reducing energy costs.
● Smart Control & Flexible Operation: Wi-fi enabled for app control plus voice control remote and wall thermostat support so you can adjust comfort from anywhere. Choose from 7 modes (auto/cool/heat/dry/fan/Eco/sleep) fine-tune airflow with 8 fan speeds(auto/mute/low/low-mid/mid/mid-high/high/turbo) and set a 24H timer for schedules.
● Quiet 360° Airflow & Easy Maintenance: This multi-zone split ac unit runs as low as 32dB for peaceful sleep and focused work while the 8-way 360° airflow reaches more of the room for fewer hot and cold spots. In addition the self-clean function helps keep the interior fresher and supports long-term performance.
● Wide Use & Exceptional Versatility: This 3-zone split ceiling cassette ac is ideal for homes offices meeting rooms and light commercial spaces such as restaurants retail stores etc. Besides the outdoor unit is compatible with various types of indoor units including ductless wall mounted ac ductless ceiling cassette and concealed ducted ac. Note: Professional installation is required.

Color	White
Material	Cold-rolled Steel Sheet Copper Aluminum
Indoor Unit Dimensions	.
9K	25.59" x 25.59" x 11.85"
12K	25.59" x 25.59" x 11.85"
18K	25.59" x 25.59" x 11.85"
Outdoor Unit Dimensions	.
18K	36.5" x 14.96" x 27.52"
27K	38.5" x 16.57" x 31.61"
35K	42.28" x 18.43" x 33.58"
Multi Zone Combination	3
Voltage	208-230V
Frequency	60Hz
Temperature Setting Range	60℉~88℉
Refrigerant	R454B
Indoor Unit Noise Level	32 dB
Max Remote Control Distance	39.2 ft
Coverage Area-9K	450 Sq.Ft
Coverage Area-12K	750 Sq.Ft
Coverage Area-18K	1250 Sq.Ft
Dehumidification Capacity-9K	55.8 Pints/Day
Dehumidification Capacity-12K	81.2 Pints/Day
Dehumidification Capacity-18K	111.6 Pints/Day
Maximum Air Flow Volume-9K	194 CFM/329 m³/h
Maximum Air Flow Volume-12K	212 CFM/360 m³/h
Maximum Air Flow Volume-18K	260 CFM/441 m³/h
18K SEER2	24
27K SEER2	24
35K SEER2	22.5
18K HSPF2	10.5
27K HSPF2	10.5
35K HSPF2	10
Diameter of Liquid Pipe	1/4"
Diameter of Gas Pipe-9K	3/8"
Diameter of Gas Pipe-12K	3/8"
Diameter of Gas Pipe-18K	1/2"
Net Weight of 18K(Outdoor Unit)	92.6 lbs
Net Weight of 27K	119 lbs
Net Weight of 35K	145.5 lbs
Net Weight of 9K	31.9 lbs
Net Weight of 12K	31.9 lbs
Net Weight of 18K(Indoor Unit)	31.9 lbs
Package Includes	1 x Outdoor Unit 3 x Indoor Unit
3 x Copper Connection Pipe - Gas Pipe	3 x Copper Connection Pipe - Liquid Pipe
3 x Communication Wire 3 x Drain Hose	3 x Remote Control & Holder
3 x Wall Thermostat 3 x Wall Sleeve	6 x Wall Cap 6 x Tape 6 x Putty
3 x Screw Kit 4 x Mounting Foot Pad	7 x User Guide

X-Pro 35000 BTU 3 Zone 22.5 SEER2 Ceiling Cassette Mini Split AC-12K + 12K + 18K
